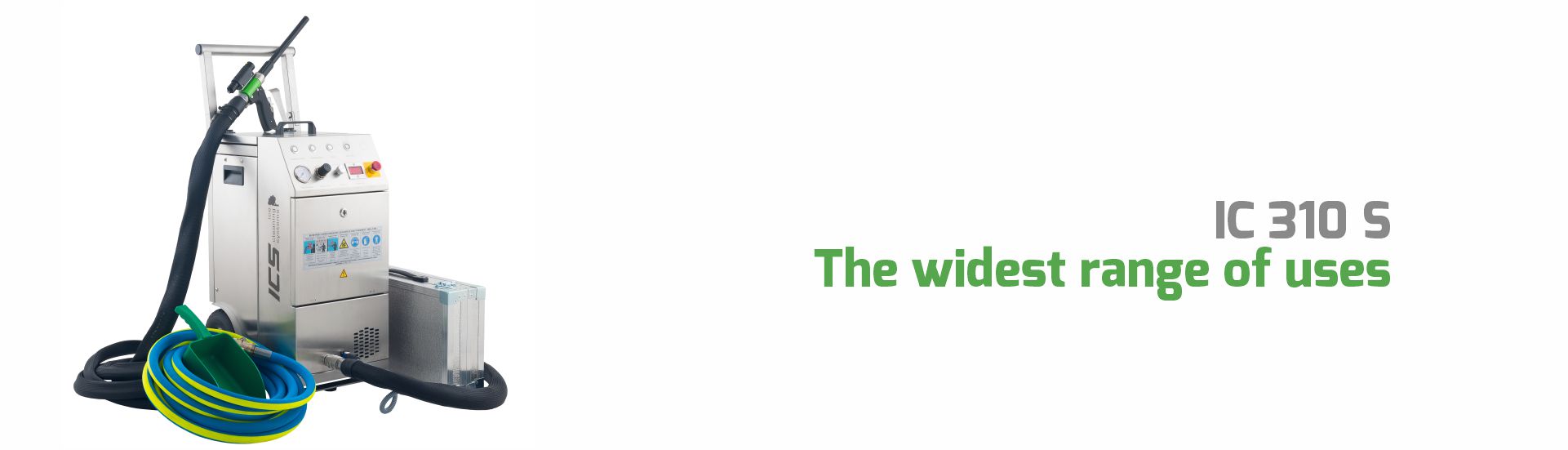

The all-round helper IC 310 S.
The most versatile single-hose electric machine for blasting dry ice with a built-in fully automatic grinder. The machine works from the finest cleaning with micro particles to aggressive blasting in the most demanding applications.
Characteristics

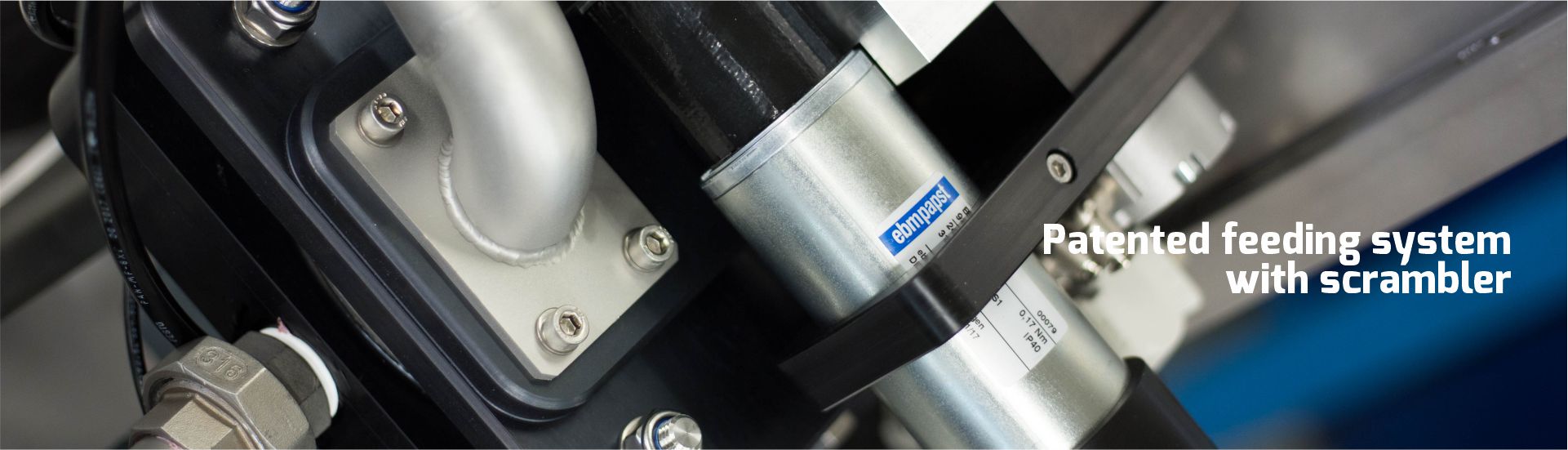

The IC310 S professional dry ice blasting machine is our most powerful device, allowing the widest possible range of cleaning. Thanks to the patented pellet grinding system, microparticles of pellets are created, which you can use to remove dirt from very sensitive surfaces, such as the surface of highly polished molds, pneumatic and electrical distribution, machine control panels, as well as the interior of a car.

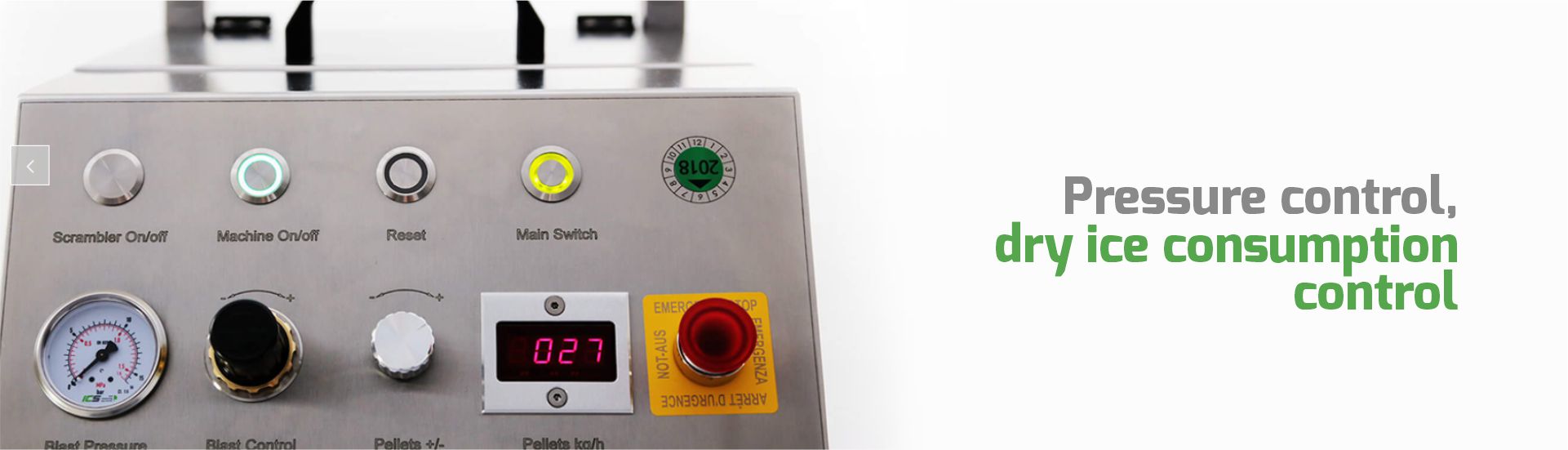

With one button on the control panel, you switch the cleaning mode with microparticles of pellets to cleaning with standard 3 mm granules for removing heavier types of dirt. The digital consumption indicator can be set to an accuracy of 1 kg, while you can use the maximum output of the device in the range from 10-100 kg of pellets/hour. with continuous regulation of the working pressure in the range of 1-16 bar.
The IC 310 S, as well as other ICS devices, have a built-in permeation system in the hopper neck as standard, our machines do not freeze. The elaborate pipe and hose system eliminates damage to the pellets during air flow, as well as the precisely designed jet nozzles multiply the speed of the pellet flow before they hit the cleaned area. The ergonomically shaped spray gun is very durable and safe, easy to use. It can be supplemented with LED lighting. IC 310 S comes standard with 7 m. with a jet hose that you can easily extend to the desired length. The all-stainless design of the frame and the casing of the machine predetermine the long service life of the device.
Even in demanding operating conditions, it requires only minimal maintenance costs. The IC 310 S is easy to handle, the weight of the device is only 75 kg. The design of the IC 310 S machine will give you a safe edge over the competition.
Examples of use
Technical parameters
| Dimensions | Consumption | Weight |
| Length: 560 mm | Dry ice: 0-100 kg/h | Empty machine: 73 kg |
| Width: 387 mm | Compressed air: 1.0-12.0 m³/min. v | (without nozzle.hose) |
| Height: 795 mm (1007 with handle) | depends on the used nozzle | |
| Work pressure | Material: | Hopper capacity |
| 1-16 bar | stainless steel, steel | 10 kg |
| Connections | Noise level | |
| Compressed air: cross coupling DIN 3489 | 60 – 120 dB(A) depends on the jet pressure, | |
| 4414/EN 983 standard | surface of the jetted object and nozzles | |
| Electricity: 100-240 V, 50-60 Hz, CEE | ||
| 7/4, Type F |
